Standard Plastic Extrusions List


In addition to a wide range of custom-made PVC extrusion profiles, D W Plastics has the tooling for a variety of high-quality, standard, made-to-order plastic extrusion products. We do not hold stock but attempt a quick turnaround from date of order to delivery, normally within 2 to 3 weeks.

Minimum order quantities (MOQ) vary according to the profile, but usually start at around 5000 metres. As the profiles are made to order we can cut to various lengths and supply in different sized packs if required. If the PVC profile you require is not listed, please get in touch with us to see if we can help further.

TRUNKING / CONDUITS:Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS (UPVC) LENGTH (m) PER PACK MOQ PKS
DWP-01461-SA 16MM X 16MM RIGID PLASTIC TRUNKING (WITH SA TAPE) 3.05 12 150 image icon
DWP-01461 16MM X 16MM RIGID PLASTIC TRUNKING (NO TAPE) 3.05 12 150 image icon
DWP-01288-SA 25MM X 16MM RIGID PLASTIC TRUNKING (WITH SA TAPE) 3.05 12 150 image icon
DWP-01288 25MM X 16MM RIGID PLASTIC TRUNKING (NO TAPE) 3.05 12 150 image icon
DWP-01460-SA 38MM X 16MM RIGID PLASTIC TRUKING (WITH SA TAPE) 3.05 12 150 image icon
DWP-01460 38MM X 16MM RIGID PLASTIC TRUNKING (NO TAPE) 3.05 12 150 image icon
PARTITION JOINTS/DIVISION BARS: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS (UPVC/PVC) LENGTH (m) PER PACK MOQ PKS
DWP-00607 2.5MM DIVISION BAR (51MM X 27.2 X 2.3MM) 3.05 25 75 image icon
DWP-00648 2.5MM DIVISION BAR + FLEXI (49MM X 27MM TO FIT 2.5MM BOARD) 3.05 25 75 image icon
DWP-00830 2.5MM DIVISION BAR + FLEXI (46MM x 26MM TO FIT 2.5MM BOARD) 3.05 25 75 image icon
DWP-00912 2-PART 50MM DIVISION BAR TOP + FLEX (29.5MM x 3.5MM) 3.05 25 70 image icon
DWP-00913 2-PART 50mm DIVISION BAR BOTTOM (50MM x 2.9MM x 2MM THICK) 3.05 25 70 image icon
DWP-01142 2-PART 70mm DIVISION BAR TOP (52MM X 3.4MM) 3.05 25 50 image icon
DWP-01141 2-PART 70mm DIVISION BAR BOTTOM (72 X 3MM X 1.3MM THICK) 3.05 25 50 image icon
DWP-01096 4.5MM DIVISION BAR (55MM x 30MM X 1MM THICK) 3.05 25 75 image icon
DWP-00752 7MM DIVISION BAR (49MM x 33MM X 6.5MM GAP) 3.05 25 75 image icon
DWP-01025 2.4MM DIVISION BAR (28MM X 18MM X 2.4MM GAP) 3.05 25 75 image icon
DWP-01018 3MM DIVISION BAR (24MM X 18MM X 3.5MM GAP) 3.05 25 75 image icon
DWP-01167 2-PART DIVISION BAR TOP + FLEX (20.6MM X 3.2MM) 3.05 25 75 image icon
DWP-01168 2-PART DIVISION BAR BOTTOM (40MM X 2.3MM X 1.25MM THICK) 3.05 25 70 image icon
DWP-01167 2-PART DIVISION BAR TOP + FLEX (20.6MM X 3.2MM) 3.05 25 70 image icon
DWP-01169 2-PART DIVISION BAR BOTTOM (38MM X 2.3MM X 1.25MM THICK) 3.05 25 70 image icon
DWP-01150 8-10MM 2-PART DIVISION BAR TOP (43.7 X 10.8MM X 8.7MM GAP) 3.05 25 70 image icon
DWP-01149 8-10MM 2-PART DIVISION BAR BASE (45MM X 9.8MM X 7.5MM GAP) 3.05 25 70 image icon
DWP-00652 22MM H-SECTION (22MM X 22MM 8MM GAP) 3.05 50 40 image icon
DWP-00976 SMALL H-SECTION (19.6MM X 8.3MM GAP X 8.6MM GAP) 3.05 50 40 image icon
PLASTIC CAPPING: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS (UPVC/PVC) LENGTH (m) PER PACK MOQ PKS
DWP-00608 3MM J-SECTION /CAPPING (19MM X 14MM X 2.5MM - 1.1MM THICK) 3.05 25 75 image icon
DWP-00647 2.5MM CAPPING + FLEXI TRIM (30MM X 19MM TO FIT 2.5MM BOARD) 3.05 25 75 image icon
DWP-00615 25MM (1") CAPPING (57MM X 14MM X 2MM THICK) 3.05 20 75 image icon
DWP-00751 J-SECTION (36.5MM X 24MM X 4MM GAP) 3.05 25 75 image icon
DWP-00974 J-SECTION (39MM X 20MM X 19.5MM GAP – 1.6MM THICK) 3.05 25 75 image icon
DWP-01095 4.5MM J-SECTION / CAPPING (29.5MM X 20MM X 4MM GAP) 3.05 25 75 image icon
DWP-01013 J-SECTION (30MM X 16MM X 1.9MM THICK) 3.05 25 75 image icon
DWP-01014 TOP HAT CHANNEL (51MM X 51MM X 16MM - 3MM WALL) 3.05 10 75 image icon
DWP-01212 SMALL INSIDE CORNER (15.7MM X 13MM X 2MM THICK) 3.05 25 70 image icon
DWP-01016 F-SECTION (SMALL OUTSIDE CORNER 16 X 16 X 21MM X 2.7MM GAP) 3.05 25 70 image icon
DWP-01026 COVER (SNAP ON) CO-EXTRUSION (51.5MM X 14MM GAP) 3.05 25 60 image icon
DWP-00941 COVER (77.5MM WITH 35.3MM CLIP - 1.4MM THICK) 3.05 10 100 image icon
DWP-01002 LARGE INSIDE CORNER/COVING (48MM x 40MM x 36MM X 2M THICK) 3.05 10 100 image icon
UPVC CHANNELS: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS LENGTH (m) UNITS PER PK MOQ PKS/COIL
DWP-01044 U-CHANNEL UPVC (14.5MM X 1OMM UPRIGHTS X 12.5MM GAP) 3.05 200 16 image icon
DWP-00899 U-CHANNEL UPVC (8MM X 5MM UPRIGHTS X 5.5MM OPENING) 3.05 200 16 image icon
DWP-00881 U-CHANNEL UPVC (15MM X 15MM UPRIGHTS X 9.72MM GAP) 3.05 200 16 image icon
DWP-00745 U-CHANNEL UPVC CLIP (27MM X 3.5MM UPRIGHTS X 4MM CLIP ARM) 3.05 250 12 image icon
DWP-01156 U-CHANNEL UPVC (19MM X 19MM UPRIGHT X 8MM OPENING) 3.05 20 85 image icon
DWP-00424 U-CHANNEL SMALL,UPVC WITH FLEXI (8MM UPRIGHTS X 0.6MM GAP) 800 1 30 image icon
RIGID PLASTIC ANGLES: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS (UPVC) LENGTH (m) PER PACK MOQ PKS
DWP-00609 50MM EXTERNAL ANGLE LIGHT (1.5MM THICK) 3.05 25 75 image icon
DWP-00610 50MM INTERNAL ANGLE LIGHT (1.5MM THICK) 3.05 75 75 image icon
DWP-01021 25MM INTERNAL ANGLE (25MM X 25MM X 2MM WALL / EXT RIBBING) 3.05 75 75 image icon
DWP-01022 25MM EXTERNAL ANGLE (25MM X 25MM X 2MM WALL / INT RIBBING) 3.05 25 75 image icon
DWP-01019 38MM INTERNAL ANGLE (2MM WALL) 3.05 25 75 image icon
DWP-01020 38MM EXTERNAL ANGLE (2MM WALL) 3.05 25 75 image icon
DWP-01000 50MM INTERNAL ANGLE (50MM X 50MM X 2MM WALL) 3.05 25 70 image icon
DWP-01001 50MM EXTERNAL ANGLE (50MM X 50MM X 2MM WALL) 3.05 25 70 image icon
DWP-00984 25MM 90° ANGLE (25MM X 25MM X 1.4MM WALL) 3.05 50 40 image icon
DWP-00985 38MM 90° ANGLE (38MM X 38MM X 1.4MM WALL) 3.05 50 40 image icon
DWP-00878 38MM 90° ANGLE (38MM X 38MM X 2.2MM WALL) 3.05 25 75 image icon
DWP-00999 19MM ANGLE (19MM X 19MM X 1.4MM WALL) 3.05 25 80 image icon
DWP-01036 46MM ROUNDED ANGLE (46MM X 46MM X 1MM WALL) 3.05 25 75 image icon
DWP-01130 50MM FOLDING ANGLE STRIP (52MM X 1.5MM WALL) 3.05 50 40 image icon
PLASTIC SPACERS & INFILLS: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC EXTRUSIONS LENGTH (m) PER PACK PKS / PCS
DWP-01196 25MM X 4MM RECTANGULAR SOLID UPVC SPACER 2.44 25 85 image icon
DWP-01226 25MM X 5MM RECTANGULAR SOLID UPVC SPACER 2.44 25 85 image icon
DWP-01155 15MM X 6MM RECTANGULAR SOLID UPVC SPACER 2.44 25 85 image icon
DWP-00950 100MM X 13MM RECTANGULAR SPACER ROUNDED CORNERS 2.44 5 40 image icon
DWP-00826 85MM X 45MM RIGID PVC INFILL SECTION (3MM THICK WALL) 2.44 1 200 image icon
DWP-00953 15MM X 9.5MM X 3MM SOLID UPVC WEDGE 2.44 25 80 image icon
DWP-00873-19F T-SECTION (FLEXIBLE PVC) – 19MM - 10M COIL (5 PER BOX) 10 5 100 image icon
DWP-00873-19R T-SECTION (RIGID PLASTIC) – 19MM - 2.44M LENGTH 2.44 50 45 image icon
DWP-00873-25F T-SECTION (FLEXIBLE PVC) – 25MM - 10M COIL (5 PER BOX) 10 5 100 image icon
DWP-00873-25R T-SECTION (RIGID PLASTIC) – 25MM - 2.44M LENGTH 2.44 50 45 image icon
PLASTIC STRAPPING & CLIPS: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - PLASTIC EXTRUSIONS LENGTH MTR UNITS /PACK MOQ PKS/COIL
DWP-00436 15MM HDPE PLANT STRAPPING - AVOCADO (15MM X 2.5MM THICK) 1.5 200 30 image icon
DWP-00550 25MM X 3MM FLEXIBLE PVC STRAPPING - BLACK RECHIP - COIL 25 1 200 image icon
DWP-00918 15MM CARTON CLIP (UPVC FOOD GRADE) - 40MM LONG 0.04 1000 100 image icon
UPVC CLADDING: Click on icon to view drawing image icon
PRODUCT CODE: DESCRIPTION - WHITE PLASTIC CLADDING LENGTH (m) PER PACK MOQ PKS

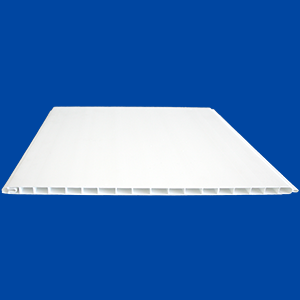

DWP-00740 LARGE CLADDING SECTION (300MM) 3.05 10 80 image icon
